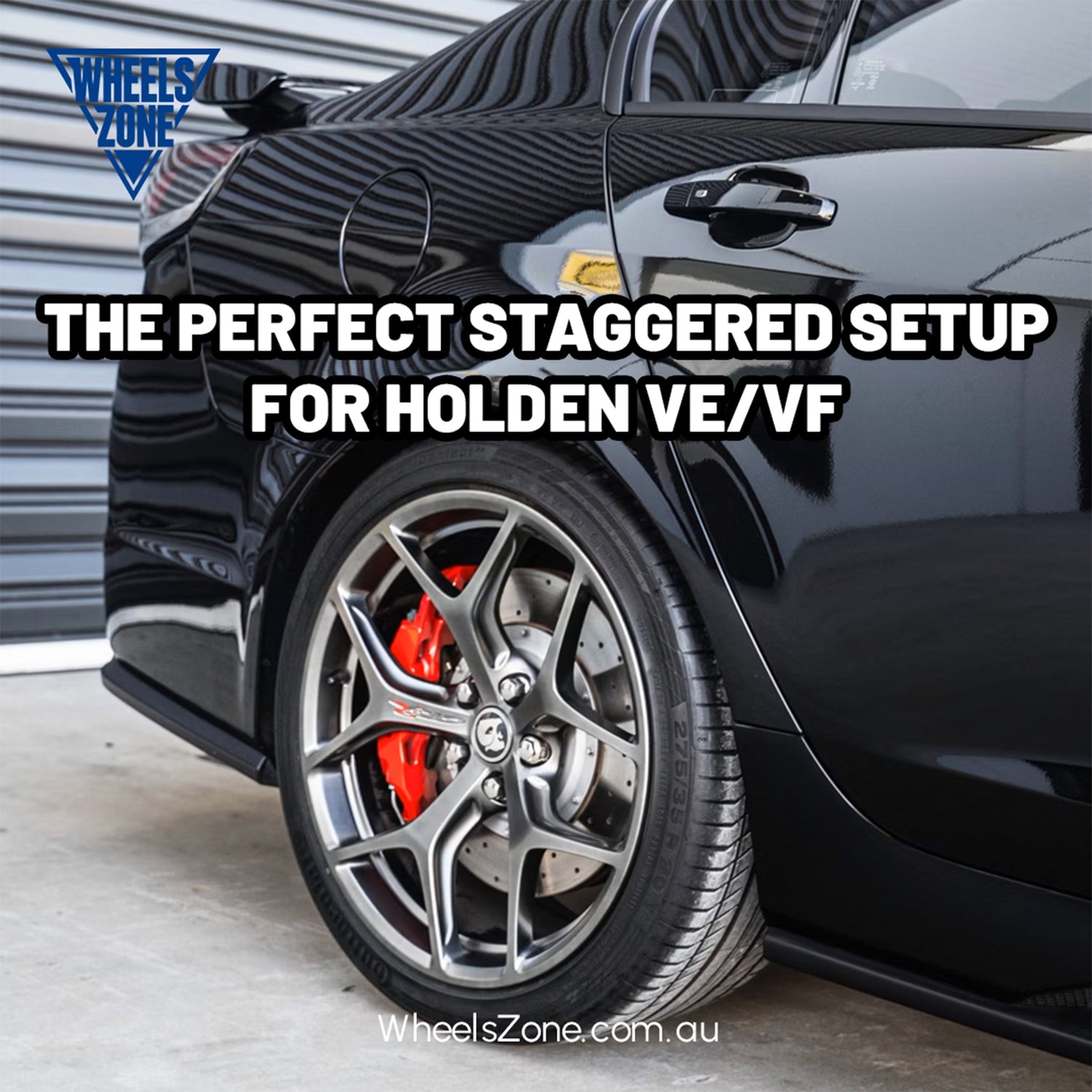

The Perfect Staggered Setup for Holden VE/VF: Achieving the 'Flush' Look Without Rubbing
For any Holden Commodore VE or VF owner, the "Stance" is everything. There is a fine line between a car that looks aggressive and one that looks like it’s wearing wheels that don't fit.
The Holy Grail of Holden fitment is the "Flush Look"—where the wheel sits perfectly inline with the guard. To achieve this without the dreaded tire rub, you need to master the Staggered Setup.
1. What is a Staggered Setup?
A staggered setup means your rear wheels are wider than your front wheels. For the VE/VF chassis, this isn't just about aesthetics; it’s about putting more rubber on the ground to handle that iconic Australian rear-wheel-drive power.
The Pro-Choice Dimensions:
- Front: 20x8.5J (Commonly paired with 245/35 R20 tires)
- Rear: 20x9.5J or 20x10J (Commonly paired with 275/30 R20 or 285/30 R20 tires)
Running a 10J rear gives the Commodore that deep-concave look that makes the VF GTS or SSV Redline look so muscular from the rear. However, the wider you go, the more critical your Offset (ET) becomes.
2. The Offset (ET) Secret: Flush vs. Rubbing
The biggest mistake owners make is choosing the wrong Offset. Offset determines how far the wheel pokes out or sits tucked inside the wheel arch. If the ET is too low, you'll hit the fender; too high, and you'll hit the suspension strut.
For Standard Ride Height:
- Front: ET35 to ET45 is the safe zone for a clean look.
- Rear: ET45 to ET52 ensures the tire stays tucked safely within the guards.
For Lowered Suspension (The "Goldilocks" Zone):
If you’ve installed King Springs, coilovers, or an Air Ride system, your clearance changes. When the car is lowered, the natural camber pulls the top of the wheel in, but the risk of "scrubbing" the inner fender liner increases during compression.
Our Recommendation for Lowered VF/VE: Aim for a Rear Offset of ET45-ET48. This pushes the wheel out just enough to be flush with the guard, providing that aggressive silhouette while maintaining enough clearance to avoid rubbing when you hit a bump or have passengers in the back.
3. Brake Clearance: Don’t Forget the Brembos
If you are driving a Redline, Motorsport Edition, or an HSV, you likely have massive Brembo or AP Racing calipers. Many aftermarket wheels will hit these calipers even if the PCD (5x120) is correct.
At WheelsZone, our Holden & HSV Reproduction range is specifically engineered with high-disk profiles to clear large brake packages without the need for dangerous spacers. We ensure the "spoke curvature" provides the necessary air gap for high-performance braking systems.
4. Get the Perfect Stance Today
Achieving the perfect fitment shouldn't be a guessing game. We have tested hundreds of combinations to find the ultimate setup for the Australian car scene. Whether you want the classic silver finish or the aggressive shadow chrome, we have the stock ready to ship.
Stop guessing and start driving with the perfect fitment.
